Description
Dimensions
| Nom. Size | I.D. Min (mm) | I.D Max (mm) | O.D (mm) | Approx Weight (kg) |
|---|---|---|---|---|
| 16 | 12.0 | 15.0 | 16.0 | 0.15 |
| 20 | 14.0 | 18.0 | 20.0 | 0.20 |
| 25 | 19.0 | 24.5 | 25.0 | 0.28 |
| 32 | 24.0 | 28.5 | 32.0 | 0.50 |
| 40 | 30.0 | 38.0 | 40.0 | 0.75 |

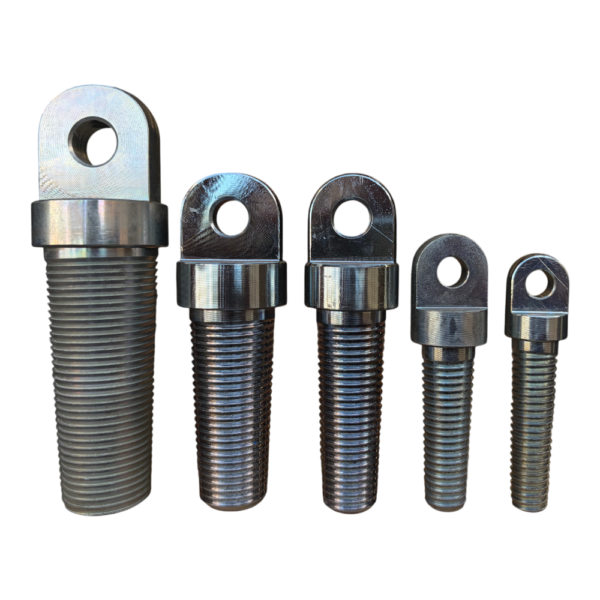

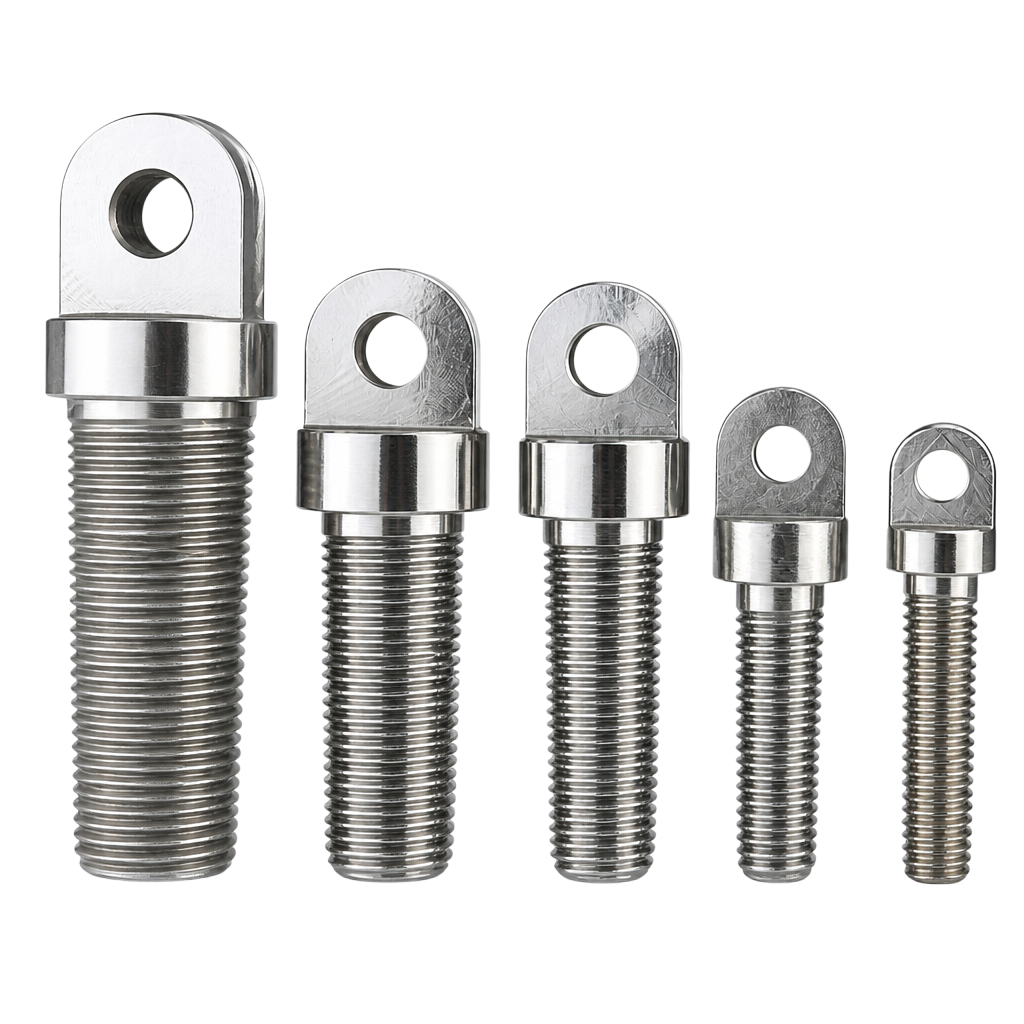

Heavy-Duty Screw-In Duct Pullers for PE Pipe Installation
Australian Made Screw-In Duct Pullers provide a strong and reliable internal grip for pulling polyethylene (PE) pipe and ducting during Horizontal Directional Drilling (HDD) and trenchless installation projects. Manufactured from high-tensile steel with a precision-machined tapered thread, they cut into the inside wall of the pipe to create a secure connection that tightens under load.
Whether you’re installing telecommunications ducting, electrical conduit or polyethylene pipe, our Screw-In Duct Pullers are built to perform in demanding Australian conditions. As a result, contractors can complete installations more efficiently while reducing downtime and maintaining a secure grip throughout every pull. Proudly manufactured in Australia, every duct puller is designed to deliver long-lasting performance on job sites across the country.
Why Choose Our Screw-In Duct Pullers?
Choosing the right duct puller can make a significant difference to the success of your installation. Our Screw-In Duct Pullers are engineered to provide a secure internal grip, fast installation and dependable performance on every project.
Benefits include:
✔ Australian Made
✔ Precision Machined Tapered Thread
✔ Heavy-Duty High-Tensile Steel Construction
✔ Secure Internal Grip for PE Pipe & Ducting
✔ Quick & Easy Installation
✔ Maintenance Free – No Moving Parts
✔ Zinc Plated for Corrosion Resistance
✔ Available in Multiple Sizes
✔ Australia-Wide Shipping
What Is a Screw-In Duct Puller?
A Screw-In Duct Puller, also known as an internal grip duct puller or pipe puller, is a pulling attachment designed to install polyethylene (PE) pipe and ducting. The tapered thread screws into the inside wall of the pipe or duct, creating a strong mechanical grip that becomes more secure as pulling force increases.
Using the correct duct puller helps improve installation efficiency while providing a reliable connection for HDD, trenchless and utility installation projects.
Designed for Maximum Pulling Performance
Every Screw-In Duct Puller is manufactured to provide a secure internal grip while allowing smooth installation through bores, ducts and conduits.
Key design benefits include:
- Precision-machined tapered buttress thread
- Secure internal grip for PE pipe and ducting
- Quick to install and remove
- Heavy-duty high-tensile steel construction
- Zinc plated for corrosion resistance
- Maintenance-free one-piece design
- Built for professional HDD and civil contractors
Suitable Applications
Our Screw-In Duct Pullers are commonly used for:
- Horizontal Directional Drilling (HDD)
- Polyethylene (PE) Pipe Installation
- Inner Duct Installation
- Electrical Conduit Installation
- Telecommunications Infrastructure
- Fibre Optic Networks
- Utility & Civil Construction Projects
- Trenchless Pipe Installation
- Council & Government Infrastructure Projects
Why Australian Contractors Choose Our Screw-In Duct Pullers
Australian contractors rely on equipment that performs day after day. For that reason, our Screw-In Duct Pullers are manufactured using premium materials and precision machining to deliver reliable performance in demanding environments.
Not only do they provide a strong internal grip for polyethylene pipe and ducting, but they also help reduce downtime thanks to their simple, maintenance-free design. As a result, contractors can complete installations more efficiently while maintaining high installation standards.
Moreover, local manufacturing means you receive dependable quality, expert support and fast Australia-wide delivery.
Frequently Asked Questions
What is a Screw-In Duct Puller used for?>
How does a Screw-In Duct Puller work?>
The tapered thread screws into the inside of the pipe or duct. As pulling force increases, the thread maintains a secure mechanical grip, allowing the pipe to be pulled safely through the bore.
What pipe sizes do your Screw-In Duct Pullers suit?>
We manufacture Screw-In Duct Pullers in a range of standard sizes to suit common PE pipe and duct diameters. If you’re unsure which size is right for your project, our team can help.
Are your Screw-In Duct Pullers Australian made?>
Yes. All of our Screw-In Duct Pullers are proudly manufactured in Australia using high-quality steel and precision machining processes for maximum strength and durability.
What industries use Screw-In Duct Pullers>
Our Screw-In Duct Pullers are trusted by contractors working in:
- Civil Construction
- Utility Installation
- Telecommunications
- Electrical Infrastructure
- Horizontal Directional Drilling (HDD)
- Trenchless Construction
- Renewable Energy Projects
Do you ship Australia-wide? >
Yes. We supply Australian-made Screw-In Duct Pullers to contractors throughout Australia with fast and reliable nationwide shipping.
Need Help Choosing the Right Cable Sock?
Selecting the correct Screw-In Duct Puller is essential for a safe and efficient installation.
If you’re unsure which model suits your PE pipe, duct size or HDD application, contact our team. We’ll help you choose the right duct puller for your project and ensure you get reliable performance on every installation.
