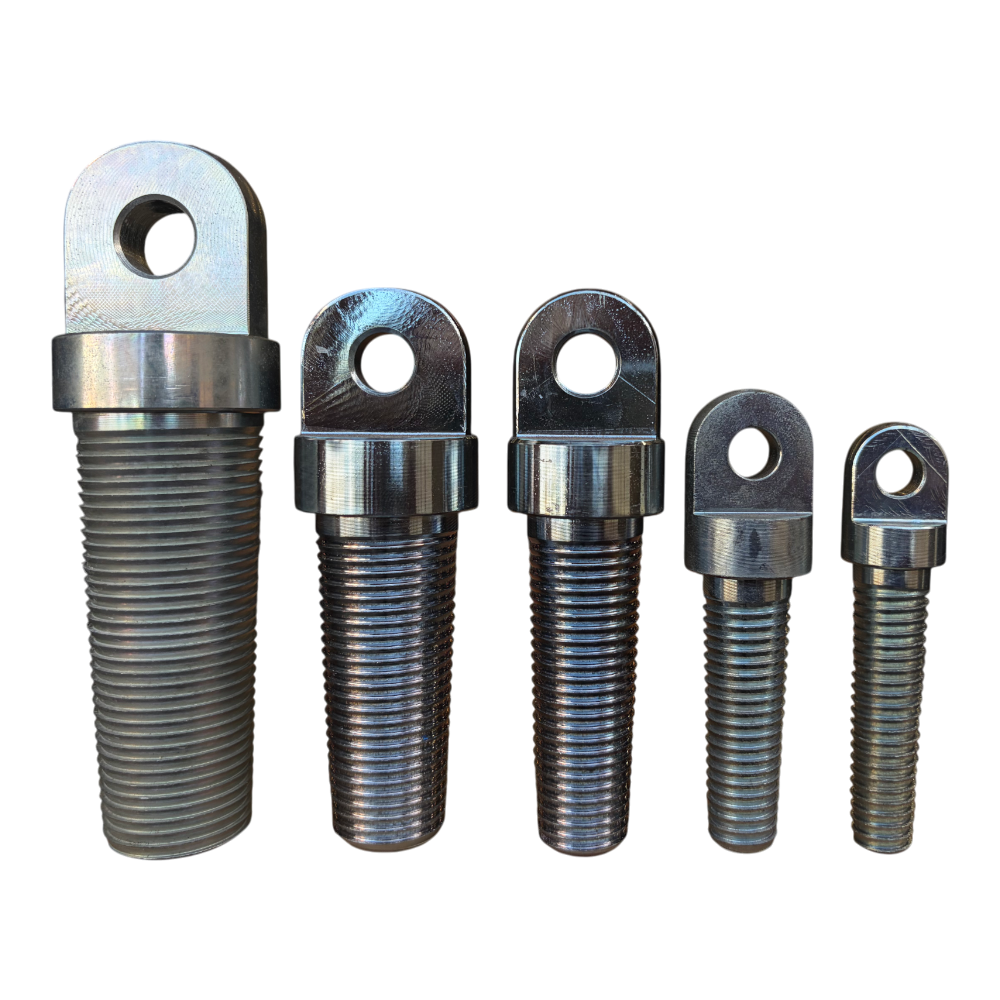

Our screw-in duct pullers are designed for safely pulling polyethylene pipe and ducting during Horizontal Directional Drilling (HDD), trenchless installation, and underground utility projects. Manufactured from high tensile zinc-plated steel, these pullers create a secure internal grip that allows safe and efficient pipe installation without damaging the duct wall.
Built for demanding civil and utility environments, our screw-in duct pullers are trusted by HDD contractors, telecommunications crews, electrical installers, and underground utility professionals across Australia.
High tensile steel construction
Zinc-plated corrosion resistance
Secure internal pipe grip
Designed for HDD and trenchless installation
Suitable for polyethylene pipe and ducting
Australian made quality
Heavy-duty industrial performance
Need a Screw-In Duct puller for your next HDD project?
Contact our team today for sizing advice and a fast quote.
We manufacture screw-in duct pullers suitable for a wide range of polyethylene pipe and conduit sizes.
Contact our team for sizing recommendations or custom towing head solutions.
| Nom. Size | I.D. Min (mm) | I.D Max (mm) | O.D (mm) | Approx Weight (kg) |
|---|---|---|---|---|
| 16 | 12.0 | 15.0 | 16.0 | 0.15 |
| 20 | 14.0 | 18.0 | 20.0 | 0.20 |
| 25 | 19.0 | 24.5 | 25.0 | 0.28 |
| 32 | 24.0 | 28.5 | 32.0 | 0.50 |
| 40 | 30.0 | 38.0 | 40.0 | 0.75 |
A screw-in duct puller is a specialised pipe pulling attachment used to install polyethylene pipe and ducting during HDD and underground boring projects. The tapered threaded design screws into the inside wall of the duct, creating a strong internal grip that tightens under load during pulling operations.
This allows contractors to safely tow conduit, poly pipe, and ducting through underground bores with reduced risk of pipe slippage or damage.
Our duct pullers use a tapered buttress thread design that grips the internal wall of the pipe as pulling force increases. This self-tightening mechanism provides secure towing performance during underground installation.
The design is ideal for:
A screw-in duct puller is used to safely pull polyethylene pipe and ducting during Horizontal Directional Drilling (HDD) and underground utility installation projects.
HDD duct pullers screw into the inside of the pipe or conduit using a tapered thread. As pulling tension increases, the puller creates a stronger internal grip for secure towing through underground bores.
These pullers are commonly used with HDPE pipe, polyethylene pipe, conduit, telecommunications ducting, and electrical utility ducting.
Yes. Zinc plating improves corrosion resistance and helps protect the puller from moisture and harsh underground conditions.
Yes. Our towing heads are manufactured to meet the requirements of Australian HDD contractors and utility installers.
Selecting the right towing head is critical to a successful HDD installation. Poorly designed or incorrectly sized towing heads can increase installation risk and place unnecessary stress on the product pipe.
Our towing heads are manufactured with durability and field performance in mind, helping contractors complete installations safely and efficiently.
We will make sure you get exactly what you need.
